DBOX M3

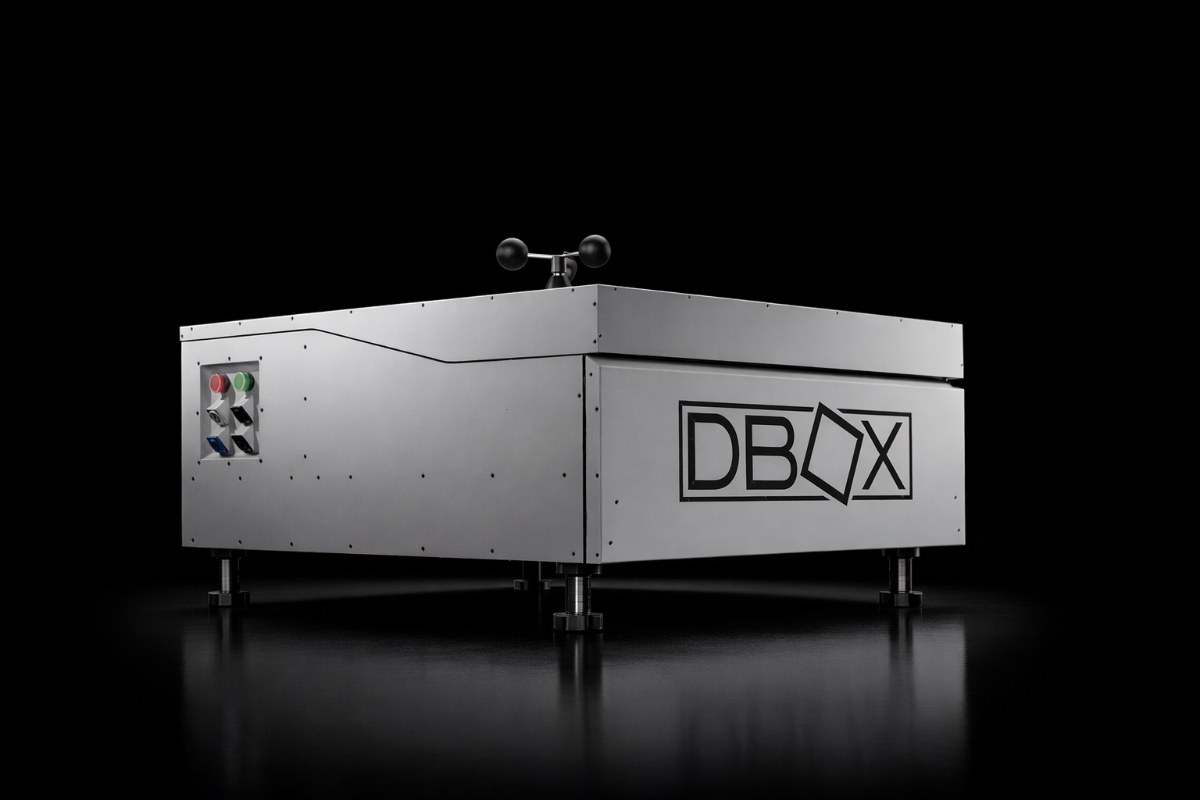

A compact autonomous docking station for DJI Mavic 3 Enterprise-series and Anzu Raptor drones. Perimeter security, infrastructure and agriculture.

DJI & ANZU

Built for everyday
autonomous operations

From infrastructure inspections to agriculture and public safety, DBOX M3 automates routine drone missions with reliable deployment, fast charging, and seamless fleet management. A compact platform designed to keep operations running without constant pilot involvement.

DronesDJI Mavic 3 E/T/M · Anzu Raptor / Raptor T
Charging40-minute charge from 20% to 90%
SecurityEncrypted pipeline: AES-256 · TLS 1.3 · NIS2 audit logging
ConnectivityDual-SIM 5G router pre-installed (Teltonika RUTX50), U-space USSP API
Vision4 security cameras (2 inside, 2 outside), Full HD, 151° FOV

Request a quote Other products

40min

fast charge, 20% to 90%

6km

max operational altitude, ASL

dual-SIM router pre-installed

IP44

ingress protection rating

Technical specifications

Compatible dronesDJI Mavic 3 E/T/M · Anzu Raptor / Raptor T
Total weightDock 43 kg · networking station 6 kg
Dimensions (closed)862 × 820 × 600 mm
Dimensions (opened)1620 × 820 × 600 mm
Networking station (deployed)900 × 800 × 1660 mm
Input voltage100–240 VAC, 50/60 Hz
Power usageMax 620 W · avg 200 W · standby 50 W
Drone charger100 W
Charging time40 min (20–90%)
SensorsRain · wind · temperature · humidity
Operating temperature−25°C to 40°C
Ingress protectionIP44S
Landing wind speed7 m/s recommended (max 10 m/s)
Max operational altitude6000 m ASL
Data transferUSB-C or wireless, configurable in GCS
Network accessGigabit Ethernet · 5G dual SIM (Teltonika RUTX50)
Security cameras4 × Full HD, 151° FOV
Data securityAES-256 at rest · TLS 1.3 · NIS2 audit logging
SoftwareDBOX GCS Ground Control Software

DJI and Anzu airframes

DJI MAVIC 3E

Wide + tele camera payload
56× hybrid zoom
RTK module for cm-level mapping
Up to 45 min flight time

DJI MAVIC 3T

Thermal + wide + tele cameras
640 × 512 thermal resolution
Point/area temperature measurement
Night operations ready

ANZU RAPTOR / RAPTOR T

NDAA-oriented alternative platform
Raptor T: thermal + zoom payload
Proven with LTG railway deployment
Fully integrated with DBOX GCS
